Summary

In this project we tested the hypothesis that a machine learning framework can predict phenotypes from compounds based to their physical and structural properties. Furthermore, using independent screening data from human cancer cells we tested the idea that our model could predict the toxic side effects of cancer drugs. If successful, this method will be suitable for prioritizing much larger libraries (e.g. consisting of millions of compounds) for specific phenotypic classes that are relevant to human physiology. Background and Motivation Unexpected toxic side effects are a major problem in drug development. Historical data show that nearly 90% of drug withdrawal cases were caused by severe toxic effects, among which the majority were associated with cardiovascular symptoms. As an example, in 2004, rofecoxib (Vioxx), Merck’s blockbuster anti-inflammatory drug was removed from the market because of increased risk of heart attack and stroke. As another example, propulsid (Cisapride), an oral drug to treat gastroesophageal reflux disease (GERD), was associated with over 400 adverse cardiac events (arrhythmias) resulting in more than 80 deaths in the USA. It was removed from the US market in 2000. Considering an average development cost of almost $1.8 billion and approximately 8.5 years of effort to bring a new drug to market, late-stage withdrawals mean significant losses to the pharmaceutical industry. The high cost of failure is also an important cause for the continuous decline in the number of new drugs that have entered the market over the past 10 years. Therefore, new methods are needed that can identify serious adverse effects during early stage of drug development.

The Zebrafish Model

Zebrafish have several properties that make them ideal for physiology-based screens: they are small, inexpensive to maintain and easily bred in large numbers - a single pair of adult zebrafish will generate 100-200 offspring per week. Embryos are only 1-4 mm long and can live for up to seven days in a single well of a standard 96 or 386 well plate supported by nutrients stored in the embryo's yolk sac. A "well plate" is a flat plate that looks like a tray with multiple wells that are used as small test tubes. Three zebrafish embryos are inserted into each well and different chemical compounds are injected into each well. A lab technician observes the zebrafish over time for a series of developmental phenotypes. In this context, a phenotype is an observable characteristic of the zebrafish resulting from the interaction of the zebrafish with the chemical compound. A specific phenotype is confirmed if 2 out of 3 of the zebrafish in a single well are observed with the same phenotype. For example, if 2 out of 3 of the zebrafish in a single well die after 24 hours, then a 24 hour death phenotype is confirmed.

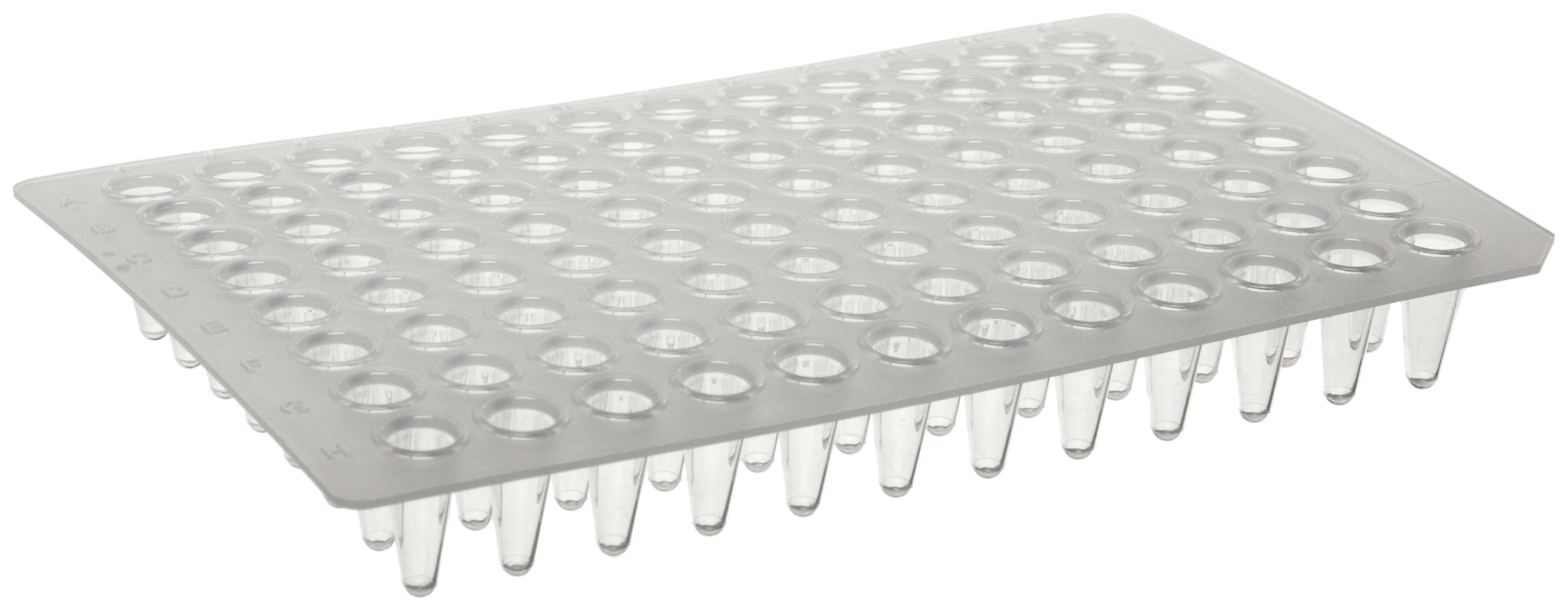

Image 1: A Typical Well Plate

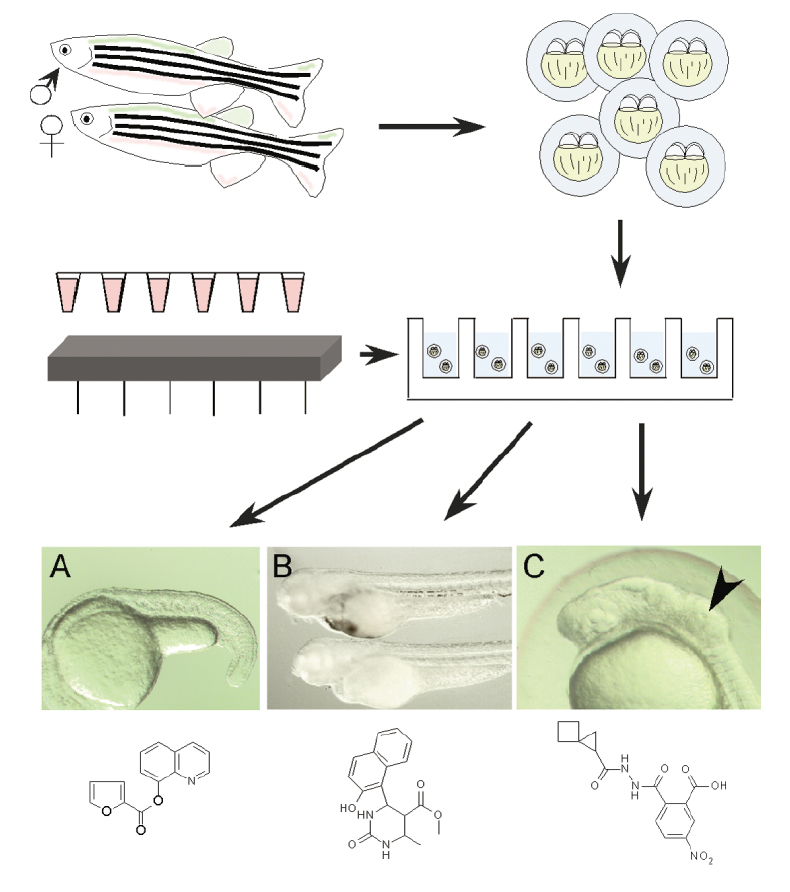

Image 2: The Process of Using Zebrafish to Observe Phenotypes

Machine Learning

The machine learning data was created by generating a list of Extended Connectivity Fingerprints ECFPs for each chemical compound using GenerateMDsoftware by ChemAxon. The ECFP fingerprints are binary values which represent specific features and characteristics the compound's molecular structure.

Training Data Set

We used the GenerateMD software to generate 1,000 binary fingerprints for each of the 4,182 compounds in the zebrafish phenotype study. The final training data set consisted of 10 different observed zebrafish phenotype outcomes and 1,000 binary ECFPs for each compound.

Independent Data Set

The independent data set was obtained from publicly available small molecule screening data from the Broad Institute's Cancer Therapeutics Response Portal (CTRP). The data sets contained phenotypic information from 545 compounds tested on 860 different human cancer cell lines. The same 4,182 binary ECFPs were generated for the independent data as was generated for the test data set.

Random Forest Machine Learning Model

Training Data Set Results

The random forest machine learning training data results showed that the best phenotype predictions were made for death phenotypes. The table below shows the receiver operating characteristic ROC area under the curve (AUC) training data scores for each of the zebrafish phenotypes. Note that P2, P7, P8, P11, P12, P13, and P14 are "death" phenotypes and occupy 7 of the top 8 AUC scores.

Table 1: ROC AUC Score For Each Phenotype Sorted by AUC Score

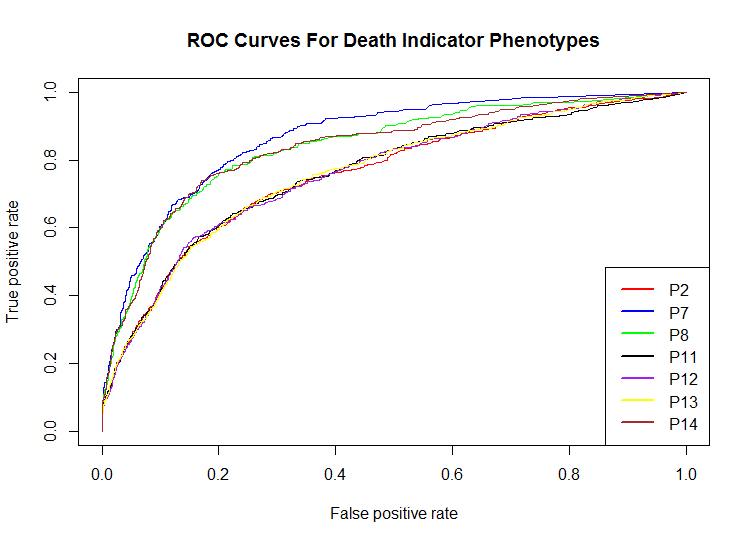

The following plot shows the ROC curves for the death phenotypes. The curves show that the random forest prediction model does a reasonable job of predicting the death indicators from chemical fingerprints in the training data. As indicated in the AUC table above, P7, P8, and P14 were predicted best by the random forest model.

Figure 1: Test Data Set ROC Curves

Independent Test Set Results

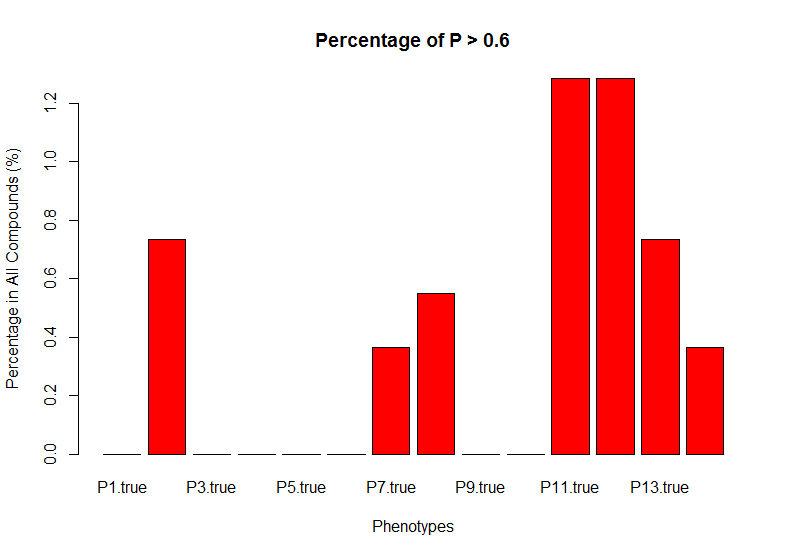

The random forest machine learning model used above was used to predict the effects of the compounds downloaded from the CTRP web site. In this part of the study, the CTRP compounds are used to predict the same observed zebrafish phenotypes as predicted in the zebrafish training data. The CTRP predicted values from the random forest machine learning algorithm were then compared to the the true experimental death phenotype data included in the CTRP data to determine how accurately the random forest model was able to predict CTRP death results. The following graph shows that the predicted results for the CTRP data at a percentage cutoff of 0.6 for each phenotypes P1 through P14 (each bar in the graph represents a CTRP predicted phenotype). For example, the P2 bar shows that approximately 0.8% of the compounds in the independent test set were predicted correct for the P2 phenotype. The highest percentage of correct predictions was only a little over 1.2%.

Conclusions

We established a machine learning framework to predict the physiological effects of chemical compounds on zebrafish embryo development. A data set consisting of more than 4,000 manual observations of 10 distinct physiological phenotypes was used to train a random forest classification algorithm. The fact that the model achieved AUC scores between 0.7 and 0.8 for some phenotypes suggest that the model may be used on much larger libraries with millions of compounds. We tested if our model could predict cell death in human cancer cells that were exposed to 545 different drugs. Physical and structural features were generated for these drugs and matched with the same features in the training set. Life/death predictions were then obtained from the random forest model. However, we found that the predicted outcomes did not compare well to the experimental result even when we varied the decision thresholds. There are several reasons why the zebrafish model failed to predict cell death on cancer cells. One important possibility is that the cancer compounds had physical and structural properties that were very distinct from those that were used for training the model. Expanding the training set to include more compounds with similar molecular features would most likely improve the accuracy of the model. Nevertheless, the results of the zebrafish model are encouraging. This model provides a resource of compound-activity associations in a vertebrate and demonstrates a means for combined in vivo/in silico screening with potentially immediate clinical relevance.
